4 Display Dual Image Video Wall Cascadable


Model: DVI-VIDEOWALL-4X Shipping Weight:  25lbs

Login for price


The DVI-VIDEOWALL-4X is a 4 port DVI/HDMI Compliant  Dual-Image Video Wall Processor. This powerful device has real time data/video processor for multiple flat panel displays or projectors. With the most flexibility on the input side, the unit accepts , DVI/HDMI,VGA CVBS, S-Video, and YPbPr and splits the input onto the connected 4 displays.

The DVI-VIDEOWALL-4X can display up to 2 video inputs(Digital and Analog) from the front end video mixer with the supplied Y cable. Thru DVI transmission, the quality of the outcome videos is guaranteed. The output display is grained up to 255 by 255 squares. Virtually any setups for the display layout can be possible by the provided software.

The embedded mixer is an advanced video processor for multimedia presentations. It supports up to four popular types of video inputs, of which two can be outputed simultaneously in Picture-In-Picture (PIP) or Picture-Aside-Picture (PAP) modes.

The DVI-VIDEOWALL-4X allows you to manipulate input videos, to different position and various sizes you want for viewing. The embedded scalar converts signals from input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to Full HD 1080p & WUXGA (1920x1200).

The DVI-VIDEOWALL-4X  sends the resulting mixed video thru DVI interface to the connected monitors/projectors based on the display layout. The layout can be readily modified to fit your applications and optimize visual effects. Typical applications include digital signage, and broadcasting/education/ surveillance systems etc.

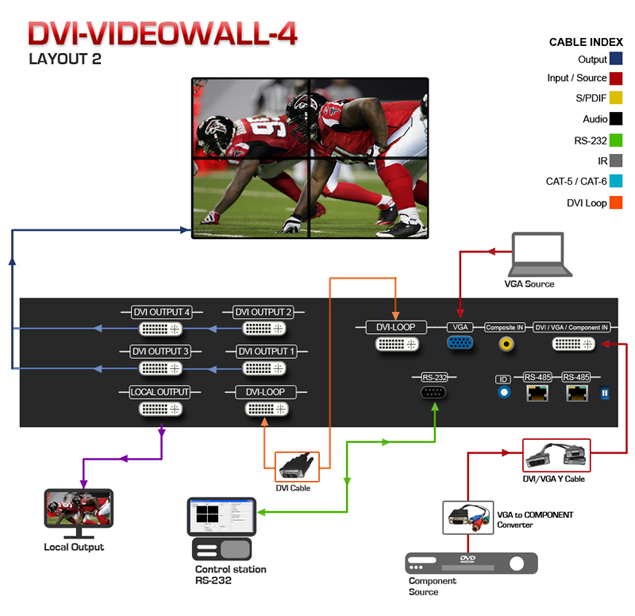

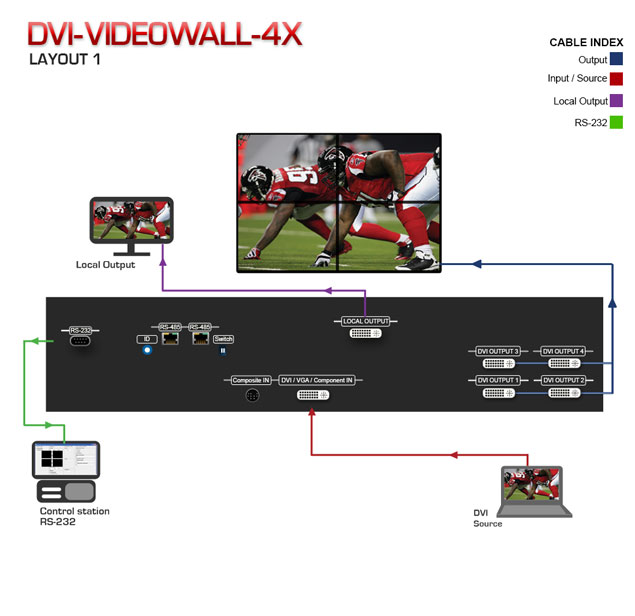

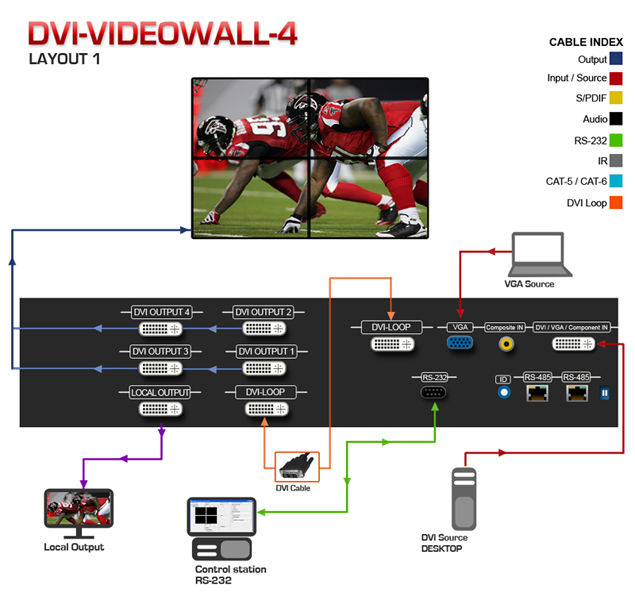

HDMI Extender over CAT5 Application Diagram

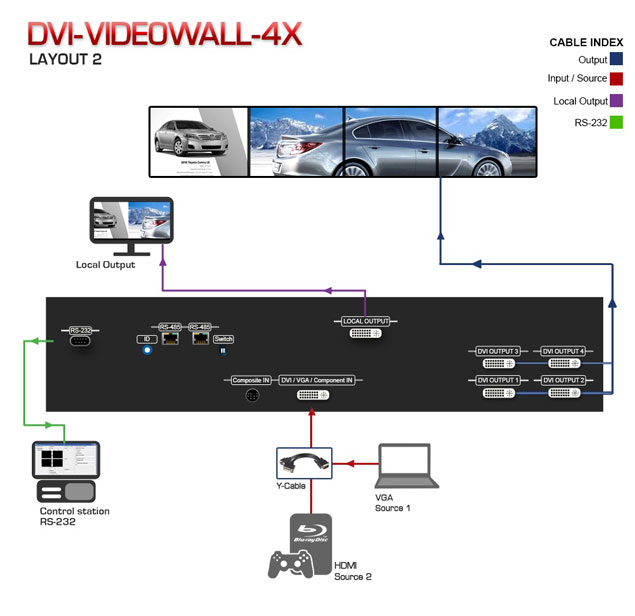

HDMI  Application Diagram

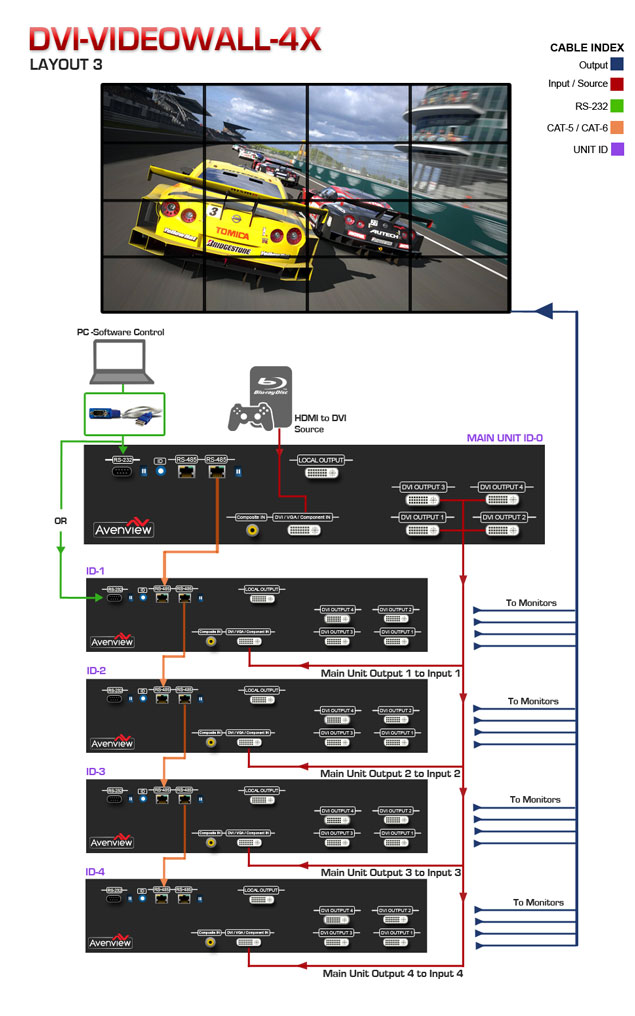

HDMI  Application Diagram



  • Four DVI outputs from 640x480 to 1920x1200 interlaced or progressive
  • Supports HDMI, DVI, S-Video, CVBS, Component, and VGA input,
  • Each DVI output has an independent controllable display area
  • Advanced video de-interlacer for improving 480i and 576i SD video input (Composite and S-video)
  • PIP, PAB, Full screen modes and adjustable size & position through software
  • Functions perfectly as video screen splitter, video converter and video switcher.
  • Titles, borders and single color background
  • Image parameters and layouts are automatically saved in Flash memory of the device and can be recalled
  • Several image parameters and layouts can saved in computer and can be loaded for later use
  • Video parameters adjustable (brightness, contrast, color temperature, etc.)
  • User-selectable output settings, up to Full HD 1080p & 1920x1200
  • Built-in factory reset switch
  • Firmware upgradeable for support of new features and technology enhancements
  • Software control through RS232 /RS485
  • Can be cascaded to obtain more displays via RS485 ports (Upto 4+4=16)
  • 2U size

Technical Specification

4 Display Video Wall Processor (VideoWall Controller)
Video Bandwidth
DVI Single Link - 4.95Gbps
VGA - 165 MHz
Component - 30 MHz
Supported Resolutions
480i / 480p / 720p / 1080i / 1080p (60) / 1920x1200@75 / 1600x1200@60
Audio Support
Embedded Video Mixer
Ability to Cascade
Yes (Upto 4 units 16 DVI Output Displays)
Input TMDS Signal
1.2 Volts (peak ū peak)
ESD Protection
Human body model -  15kV (air gap discharge) & ±8kV (contact discharge
1 x VGA
1 x DVI (HDMI through HDMI to DVI Cable)
1 x Composite
1 x RS232 1 x RS485
5 x DVI
(VGA through DVI to VGA Adapter)
DVI Connector Type
DVI-I (29-Pin female)
VGA Connector Type
HD-15 (15-pin D-sub female)
S-Video Connector
9 Pin
RS232 Connector
DE-9 (9-pin D-sub female)
RCA Connector
RJ45 Connector
WE/SS 8P8C with 2 LED indicators
18" x 17" x 3.5" (L x W x H)
2U Rack-mount with ears
Power Supply
AC 100-240V
Power Consumption
40 Watts (max)
Operating Temperature
0~40°C [32~104°F]
Storage Temperature
-20~60°C [-4~140°F]
Relative Humidity
20~90% RH [no condensation]

Package Contents

  • 1 x DVI-VIDEOWALL-4X
  • 1 x DVI to DVI/VGA Y-Cable
  • 1 x VGA to Component Adapter
  • 1 x DVI to VGA Adapter
  • 1 x Composite & S-video Breakout Cable
  • 1 x 30cm DVI to DVI Cable
  • 1 x RS232 to USB Adapter
  • 1 x Software CD
  • 1 x UL AC Power Cord
  • 1 x User's Manual

User Guides

Avenview 4 Display Video Wall Processor User GuideAvenview 4 Display Video Wall Processor User Guide

Data Sheet

Avenview 4 Display Video Wall Processor User GuideAvenview 4 Display Video Wall Processor Data Sheet


Avenview 9 Display Videowall Processor Data SheetAvenview 4 Display Videowall Processor Control Software

AutoCAD Drawings

Avenview 4 Display Dual Image VideoWall Processor  CAD DrawingAvenview 4 Display Dual Image VideoWall Processor  CAD Drawing
