Overview

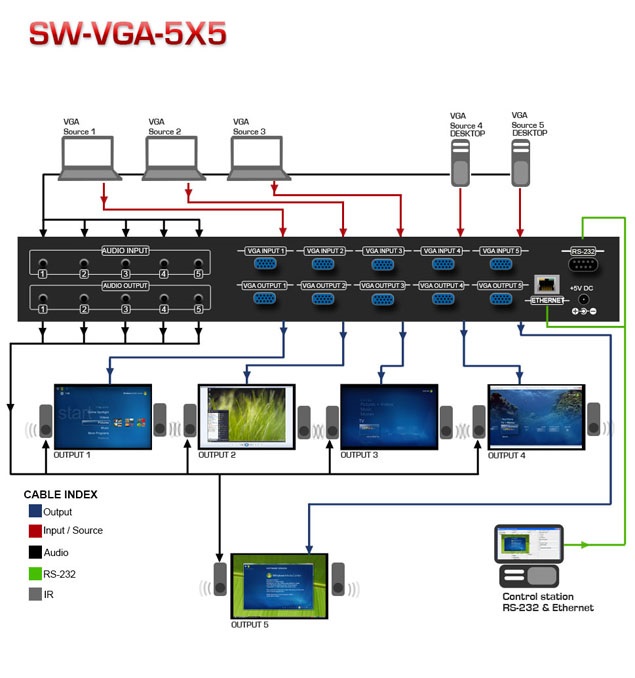

This Avenview SW-VGA-5X5 receives and amplifies up to 5 VGA inputs, perfectly switches the desired input to the VGA equipped monitor or receiver. This matrix enables the broadcast of multiple computers’ audio and video outputs to multiple displays. Any one of the inputs can be broadcasted to any or all of the outputs without introducing noticeable video quality distortion.

The matrix switcher supports VGA video bandwidth up to 400MHz and also supports YPbPr component, S-Video, and Composite signals. The re-transmitted video quality is guaranteed and the longest transmission is up to 65 meters (210 feet). Therefore, SW-VGA-5X5 offers the most convenient and cost effective means for swift switch of high quality PC graphics and HDTV videos with crystal clear audio in the market.

With equipped audio matrix, SW-VGA-5X5 is ready to be as YPbPr matrix with stereo audio and ideally for boardroom, showroom, and exhibition. Through IR remote, RS-232 or front panel push button, the control of SW-VGA-5X5 becomes versatile and easier.

Features

• Broadcasts the audio and video outputs from five computers to five monitors and speakers
• Up to 5 Graphics/Video Inputs (appropriate adapters are required)
• Supports video bandwidth up to 400 MHz
• Any one of the inputs can be broadcasted to any or all of the outputs
• Built-in video signal amplifier for up to 65m (210-ft) long transmission
• 3.5mm audio outputs to drive either speakers or earphones
• Multiple control by IR remote, push button, and RS-232 control
• 1U rack mountable
