8X8 HDMI Matrix Switcher with 3D over Cat5, 8 Receivers Included





Model: SW-HDM3D-C5-8X8 Shipping Weight:  9.1lbs

Starting at: Login for price







Please Choose:

Add-Ons










Overview

The Avenview SW-HDM3D-C5-8X8, HDMI Matrix Switch with 3D over CAT-5 with IR Pass-Through provides the most flexible and cost effective solution in the market to route high definition video sources plus multi-channel (up to 7.1 channel) digital audio from any of the four HDMI sources to the remote displays at the same time.

Through low cost Cat-5/5e/6 LAN cables, not only high quality video and audio can be transmitted to the display sites, but also users can switch among eight HDMI sources using the push-in button or remote control. With single power design at the source site, each remote module is easily installed without power supply. Furthermore, the built-in IR extension function makes users at display site access the DVD player, PS3 or any HDMI supported devices directly.

Note: Power Supply for the HDM3D-C5SW-R Receiver is only required if your solution is wired with  with one UTP cable (CAT5/6) within the wiring scheme. This makes the solution a video only matrix system. The second CAT5/6 is need for IR and Power to the Receiver which does not require a power supply at the monitor/display side which is powered from the main unit (POE-Power over Ethernet).

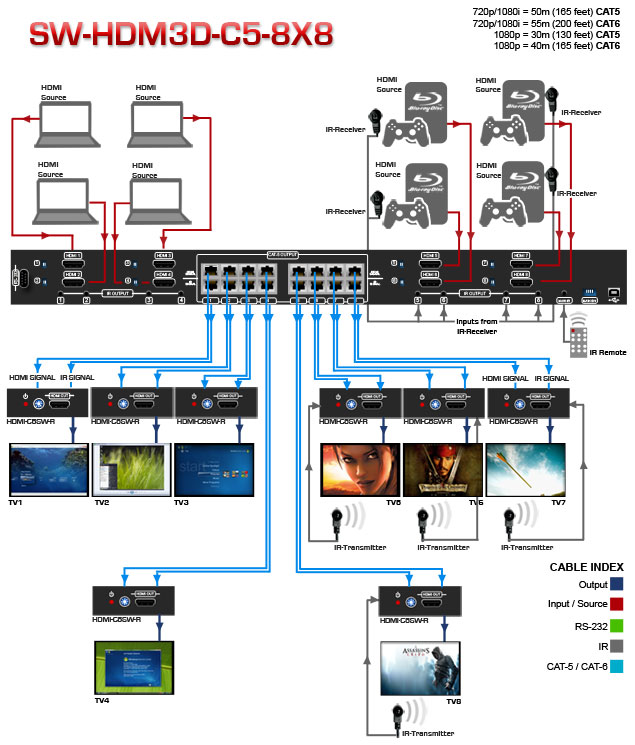

HDMI Extender over CAT5 Application Diagram

Features

  • Silicon Image chipset embedded for best quality, compatibility and reliability
  • Support HDMI Deep Color & full 3D
  • HDCP compliant
  • Allows any source to be displayed on multiple displays at the same time
  • Allows any HDMI display to view any HDMI source at any time
  • Supports 7.1 channel digital audio
  • Supports default HDMI EDID and learns the EDID of displays
  • The matrix master can switch every output channels to any HDMI inputs by push-in button, IR remote
    control, or RS-232 control
  • Allows controlling local HDMI sources such as DVD and TiVo by attached IR extender from remote receiver to matrix master
  • Allows to control matrix master through IR remote control at remote receiver's site
  • Extends video signal up to 35m (115 feet) over CAT5e at 1080p and likely longer with better HDMI source device, better grade HDMI display, and better quality solid CAT6 cable
  • Easy installation with rack-mounting and wall-mounting designs for master and receiver respectively
  • Fast response time – 2~5 seconds for channel

Technical Specifications


ModelSW-HDM3D-C5-8X8HDM3D-C5SW-R
Description8X8 HDMI Matrix Switch with 3D over CAT5HDMI 1.3 Matrix Switch Receiver with 3D over CAT5
HDMI ComplianceHDMI 1.3c
HDCP ComplianceYes
Video BandwidthSingle Link 225 Mhz (6.75Gbps)
Video Resolutions480i / 480p / 720p / 1080i / 1080p60
HDMI Transmission RangeFull HD: (1080p) ~ 35meter (115feet) (CAT5e) / 40meter (130feet) (CAT6)
HD: (720p/1080i) ~ 50meter (165feet) (CAT5e) / 55meter (180feet) (CAT6)
Audio SupportSurround Sound (up to 7.1 ch) or Stereo Digital Audio
Equalization-8-level Digital Control at Receiver Unit
Input TMDS Signal1.2 Volts (peak-to-peak)
Input DDC Signal5 Volts (peak-to-peak, TTL)
ESD Protection[1] Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
[2] Core chipset — ±8kV
Input Connectors8 x HDMI
1 x RS232
1 x RJ45 HDMI Signal
1 x RJ45 IR Signal
Output Connectors8 x RJ45 HDMI Signal
8 x RJ45 IR Control


9 x IR Socket for IR Transmitter

1 x HDMI
HDMI Input SelectionPush Button / IR Remote / RS232Push Button / IR Remote
HDMI Source ControlThrough IR Control Path from IR Receiver
Dimensions17" x 11.4" x 1.7"3.25" x 2.5" x 1"
Power Supply5V 6A DCMostly not required
Power Consumption20 Watt (max)1 Watt (max) / Provided by IR Signal CAT5/CAT6 cable from SW-HDM3D-C5-8X8
Operating Temperature0~40°C (32~104°F)
Storage Temperature-20~60C (-4~140F)
Relative Humidity20 ~ 90% RH (no condensation)

Package Contents

  • 1 x SW-HDM3D-C5-8X8
  • 8 x HDM3D-C5SW-R
  • 8 x IR Transmitter
  • 8 x IR Receiver
  • 1 x IR Remote Control
  • 2 x Rackmounting Ear
  • 1 x Power Cable
  • 1 x User's Manual

User Guides

Avenview 8x8 HDMI Matrix Switch with 3D over Dual CAT5 User GuideAvenview 8x8 HDMI  Matrix Switch with 3D over Dual CAT5 / CAT6 with 8 Receivers User Guide

AutoCAD Drawings

Avenview 4 Port User GuideAvenview 8X8 HDMI 3D Matrix Switcher Single CAT5,CAD Drawing
  Avenview 4 Port User GuideAvenview CAT5 Receiver for Matrix unit ,CAD Drawing
