Advanced Quad Screen MultiViewer with Front Panel , RS232 and IR Control





Model: DVI-SPLITPRO-4X Shipping Weight:  13.8lbs
Drag image to spin

Starting at: Login for price







Please Choose:

Add-Ons






Overview

The DVI-SPLITPRO-4X Advanced Quad Screen Multiviewer with IR Remote Control is an advanced video processor for most multimedia presentations. This unit is an ideal solution for applications where four video signals must be displayed on a single display. It supports up to 16 types of video inputs, of which four can be outputted simultaneously with the desired display layout through software control. The advanced video processor allows you to manipulate the output images to various sizes and multiple positions on the desired display. This unit can controlled with the ease of the front panel buttons, IR remote and RS232 via a cable or control system, this functionality allow the user to easily set the desired outputs by 5 preset layouts or 8 custom layouts saved by the user. The embedded scalar converts signals from input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). Dual outputs are provided in both analog (VGA) and digital (DVI) or (DVI/HDMI) format, one is connected to remote display and the other is connected to on-site display for real time monitoring.

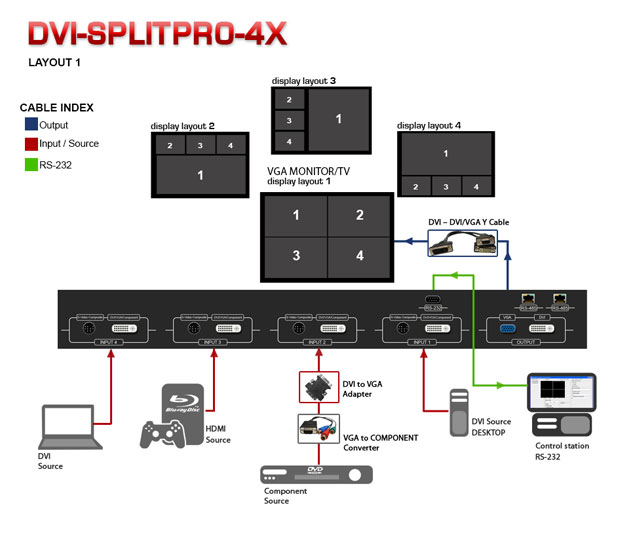

DVI-SPLITPRO-4X Advanced Quad Screen Multiviewer  Application Diagram

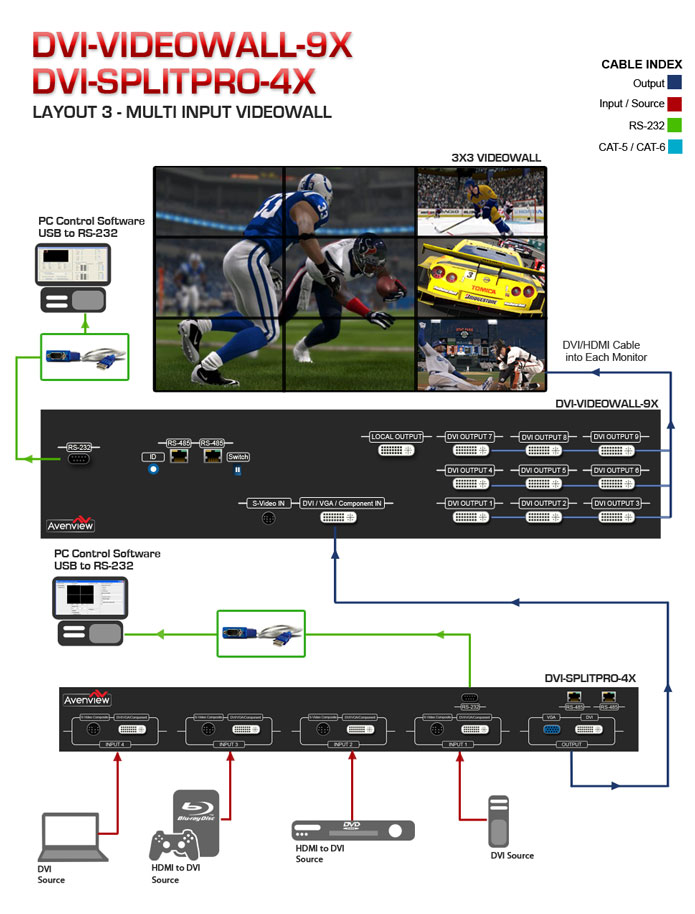

DVI-SPLITPRO-4X Advanced Quad Screen Multiviewer Application Diagram 2



Features


  • Support six most popular video formats: four VGA, four DVI/HDMI, four component, four S-Video and four composite inputs
  • Input resolution support from 640x480 to 1920x1200,Full HD 1080pinterlaced or progressive.
  • DVI & HDMI
  • Support HDCP
  • Dual outputs (DVI / VGA), 640x480 to 1920x1200, Full HD 1080p
  • Video background available.
  • Adjustable size & position through software.
  • Dynamic transition for video sizing and positioning
  • Titles, borders and colored backgrounds.
  • Resize, position, zoom & pan and blend output video.
  • Image parameters and layouts are automatically saved in flash memory and can be recalled for later use.
  • Several Image parameters and layouts can be saved in computers and can be loaded for later use.
  • Video parameters adjustable (brightness, contrast, color temperature, etc.).
  • User-selectable output settings, up to 1920x1200.
  • Use as a Video Splitter, a Video Converter and a Video Switcher.
  • Firmware upgradable for support of new features and technology enhancements.
  • Control through RS-232/RS-485 over Cat-5 and IR Remote Control
  • Can be cascaded to obtain more images using RS-485 control path
  • Control protocol available for customer proprietary design
  • 1RU Size

Technical Specifications





Model

DVI-SPLITPRO-4X

Description

Advanced Quad Screen Video Processor with Front Panel and IR Control

Dual Output Support

Yes (DVI & VGA)

Background Video Input

Yes

HDCP Compliance

Yes

Video Bandwidth

DVI/HDMI Single Link - 4.95Gbps

VGA - 165 MHz

Component  - 30 MHz

S-Video – 13.5 MHz

Composite – 13.5 MHz

Supported Resolutions

480i / 480p / 720p / 1080i / 1080p (60) / 1920x1200@75 / 1600x1200@60

Audio Support

No

Control

RS232 / RS485

Embedded Video Mixer

Yes

Ability to Cascade

Yes

Input TMDS Signal

1.2 Volts (peak – peak)

ESD Protection

Human body model - ± 15kV (air gap discharge) & ±8kV (contact discharge

Input

4 x VGA (through included DVI to VGA Adapter)

4 x DVI

4 x HDMI (through HDMI to DVI Cable / Adapter, not supplied)

4 x Component (through included adapter)

4 x Composite (through included cable)

4 x S-Video (through included cable)

1 x RS232

1 x RS485

Output

1 x DVI (Also supports HDMI 1.2 signal by DVI to HDMI Cable)
1 x VGA

DVI Connector Type

DVI-I (29-Pin female)

VGA Connector Type

HD-15 (15-pin D-sub female)

S-Video Connector

9 Pin

RS232 Connector

DE-9 (9-pin D-sub female)

RCA Connector

75Ω

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Dimensions

15.3" x 11.8" x 1.7" (L x W x H)

Size

1U Rack-mount with ears

Power Supply

AC 100-240V

Power Consumption

35 Watts (max)

Operating Temperature

0~40°C [32~104°F]

Storage Temperature

-20~60°C [-4~140°F]

Relative Humidity

20~90% RH [no condensation]

Package Contents

DVI-SPLITPRO-4X

x 1

DVI – DVI & VGA breakout Cable

x 4

VGA to Component breakout Cable

x 4

DVI to VGA Adapter

x 4

S-Video & Composite breakout Cable

x 4

Rack Mounting Kit

x 1

RS232 to USB Adapter

x 1

IR Remote Control

x 1

Software CD

x 1

AC Power Supply

x 1

User’s Manual

x 1
