Dual Link DVI Extender over Fiber, HDCP Compliant

$1,095.00USD

Model:
FO-DVI-DL-330
Shipping Weight:
5lbs

Overview

Avenview FO-DVI-DL-330 Series with fiber optic cable system lets you extend dual link digital signal of 2560x1600 up to 100m (330 feet).

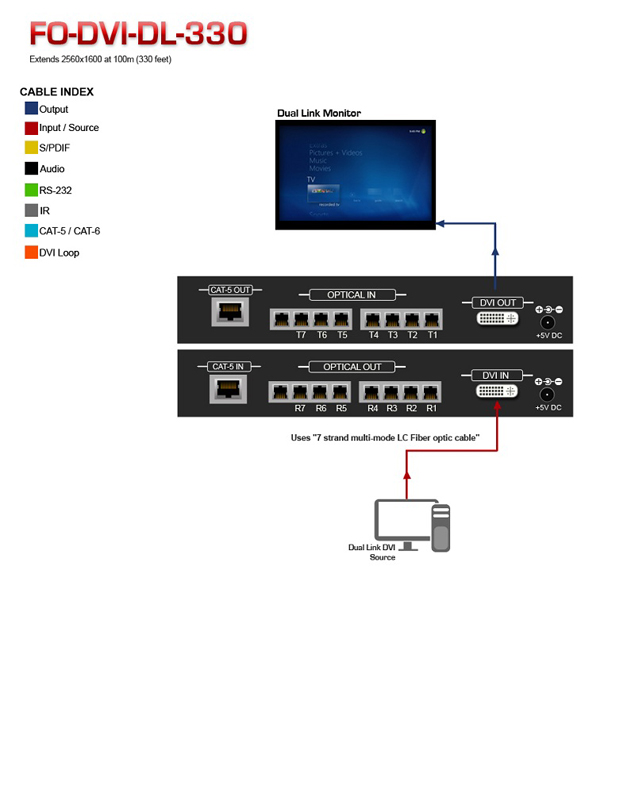

DVI Fiber Optic Extender Application Diagram

Features

  • High Speed and long distance transmission
  • Uses 7 strand multi-mode LC fiber optic cable
  • Supports both Single link and Dual link by selectable function switch
  • Supports up to Dual Link WQXGA (2560 x 1600) resolution (Apple, Dell, HP 30" Dual Link Cinema HD Monitors)
  • Self-detecting function for EDID
  • Supports two mode for DDC
    • Real Mode: Uses one CAT5 cable for DDC
    • Emulation: Pseudo DDC detection function for EDID information (2560x1600)

Technical Specification
Unit FO-DVI-DL-330 Transmitter FO-DVI-DL-330 Receiver
Unit Description DVI Dual Link Fiber Optic Transmitter DVI Dual Link Fiber Optic Receiver
Input Signal TMDS Signal (DVI 1.0 Standard)
Output Signal TMDS Signal (DVI 1.0 Standard)
Video Bandwidth 1.65Gbps
Supported Resolution & Distance Single Link: WUXGA 1920 x 1200 @ 100 meters ( 330 feet)
Dual Link: WQXGA 2560 x 1600 @ 100 meters (330 feet)
Optical Converter 7 ch 850 nm Multi-Mode VCSEL 7 ch GaAs PIN photo Diode
DVI Connector 24 pin DVI-D Plug
Optical Connector 7 LC Connector
Power Supply 5V 2A DC
Dimension 1.2" x 7.1" x 3.5"

Package Contents
  • 1 x FO-DVI-DL-330 Transmitter
  • 1 x FO-DVI-DL-330 Receiver
  • 1 x Power Adpater
  • 1 x User’s Manual
Avenview DVI Dual Link Fiber Optic Extender User GuideFO-DVI-DL-330 User Guide
