DVI Transmitter And Receiver SET Over CAT 5 extend up to 250Ft

$350.00USD

  • Model: DVI-C5-SET
  • Shipping Weight: 4.5lbs
Quantity:


Overview

DVI-C5 series extender system consists of a Transmitter and one or more Transceivers. The system can extend DVI-D signal over Cat 5/5e/5 cable.

By taking advantage of low-cost Cat5/5e/6 FTP cable, the Cat5 DVI-D Extender can simplify installation and save cost. With its unlimited cascading capacity you can extend your digital video displays almost anywhere. To simplify installation the Transmitter and Transceiver units are fitted with a magnetic pad enabling them to be quickly attached to metal surfaces. A screw fixing plate is also included for permanent installations.

The Cat5 DVI-D Extender system is perfect for digital signage and public information display applications where crystal-clear, high-resolution digital video needs to be shown without distance limitations and with reduced installation costs. Additionally, audio receiver can also be incorporated to provide multimedia broadcasting.

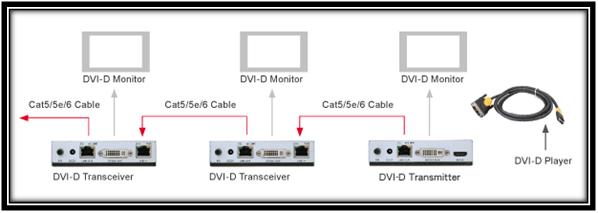

Avenview DVI Extender SET over CAT5 Applications

Features

  • Unlimited cascading of DVI-D over Cat 5/5e/6 cable
  • Transmitter can broadcast DVI-D locally and extend one DVI-D signal over RJ45 interface
  • Video Amplifier bandwidth: 1.65GHz
  • Maximum distance between Transmitter and Transceiver is:
    • 80m (275 ft) at 800x600
    • 50m (165 ft) at 1024x768
    • 40m (130 ft) at 1280x1024
  • DVI Input/output Connector: DVI-D
  • Built-in EQ control to adjust the video quality
  • LEDs on Transmitter and Transceiver to indicate DVI signal activity
  • Transmitter is equipped with magnetic pad and metal plate for easy installation
  • Compact size

Technical Specification
Model DVI-C5-S DVI-C5-R
Description 1 Port DVI-D Transmitter 1 Port DVI-D Transceiver
Input HDMI (DVI - HDMI cable included) RJ45 x 1
Output DVI Female x 1
RJ45 x 1
Maximum Distance & Resolution With each cascading length:
< 80m (275ft) @ 800x600
< 50m (165ft) @ 1024x768
< 40m (130ft) @ 1280x1024
Video Control EQ x 1
Signal Type DVI-D
LED Power and Activity
Power Consumption DC 5V 650mA
Dimensions 68 x 42 x 19
Model # Description
DVI-C5-S DVI Transmitter via Cat 5, extends up to 250 ft
DVI-C5-R DVI Transmitter / Receiver / Repeater via Cat 5, extends up to 250 ft
Avenview DVI Transmitter and Receiver SET User GuideDVI Avenview DVI Transmitter and Receiver SET DVI-C5-SET User Guide
Avenview DVI Transmitter and Receiver SET Data SheetDVI Avenview DVI Transmitter and Receiver SET DVI-C5-SET Data Sheet
