DVI-D Extender over Fiber Optical Cable, HDCP Compliant

Starting at: $520.00USD

Please Choose:

Add-Ons





Length
Model:
FO-DVI-XX-MM

Overview

The DVI-D Fiber Optical Extension Cable locates a single link digital DVI display up to 330 feet from a computer with no loss of signal - delivering crystal clear digital images instantly.

The cables are an integrated DVI-D cable solution, which includes the fiber optics components and the DDC signals built into the cable and the DVI connectors. The DVI-D Fiber Optical Cables are the ideal solution for a wide range of applications. Examples include:

  • Video wall System
  • Large LED Sign Board
  • Medical Imaging Equipment
  • Airplane On-board Video System
  • Home Theater
  • TV Broadcast Station
  • Auditorium
  • Conference Room Video Equipment

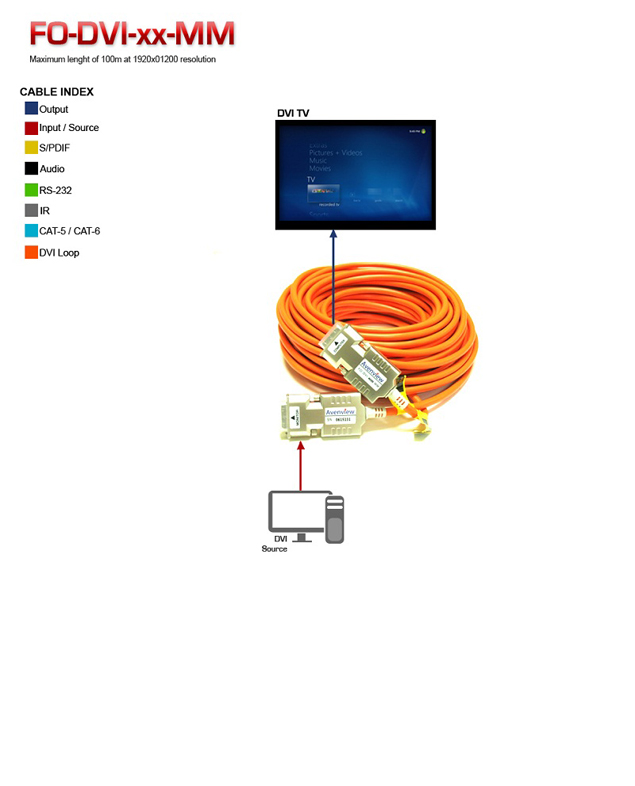

DVI Fiber Optic Extender Application Diagram

Features

  • High Speed and long distance transmission by Optical fiber
  • Fully compatible with DVI Standard by DDWG
  • Use of standard DVI Plug
  • R, G, B, Clock signal is transmitted Optical Fiber
  • Supports up to WUXGA (1920 x 1200) resolution
  • DDC signal and 5V power line is transmitter by copper line
  • Optical Fiber only system without DDC Corresponding to T.M.D.S Signal
  • No EMI characteristics for medical instruments and airplane

Technical Specification
Unit FO-DVI-XX-MM Transmitter FO-DVI-XX-MM Receiver
Unit Description DVI Single Link Fiber Optic Transmitter DVI Single Link Fiber Optic Receiver
Input Signal TMDS Signal (DVI 1.0 Standard)
Output Signal TMDS Signal (DVI 1.0 Standard)
Video Bandwidth 1.65Gbps
Supported Resolution & Distance Up to WUXGA 1920 x 1200 @ 100 meters ( 330 feet)
Optical Converter 4 ch 850 nm Multi-Mode VCSEL 4 ch GaAs PIN photo Diode
DVI Connector 24 pin DVI-D Plug
Dimension 2.8" x 1.6" x 0.6"

Package Contents
  • 1 x FO-DVI-XX-MM Cable System
  • 1 x Power Adpater
  • 1 x User’s Manual
Model # Description Length
FO-DVI-10MM DVI-D Fiber Optical Cable, 33 Feet 10 Meters (33 Feet)
FO-DVI-15MM DVI-D Fiber Optical Cable, 49 Feet 15 Meters (49 Feet)
FO-DVI-20MM DVI-D Fiber Optical Cable, 66 Feet 20 Meters (66 Feet)
FO-DVI-25MM DVI-D Fiber Optical Cable, 82 Feet 25 Meters (82 Feet)
FO-DVI-30MM DVI-D Fiber Optical Cable, 100 Feet 30 Meters (100 Feet)
FO-DVI-50MM DVI-D Fiber Optical Cable, 165 Feet 50 Meters (165 Feet)
FO-DVI-75MM DVI-D Fiber Optical Cable, 246 Feet 75 Meters (246 Feet)
FO-DVI-100MM DVI-D Fiber Optical Cable, 330 Feet 100 Meters (330 Feet)
Avenview DVI Dual Link Fiber Optic Extender User GuideFO-DVI-XX-MM User Guide
