KVM Extender Set Over Cat 5 up to 1000 Feet (PS/2)

Overview

KVM-C5 Series extender solution can extend the KVM control (Keyboard / Video / Mouse) up to 300m (1000 ft) over a single Cat5e cable. Built-in matured KVM technology and video signal processing can extend KVM signal correctly and provide a premium video resolution of up to 2048x1536@200m (650 ft) or maximum distance of 300m (1000ft) at up to 1600x 1200.

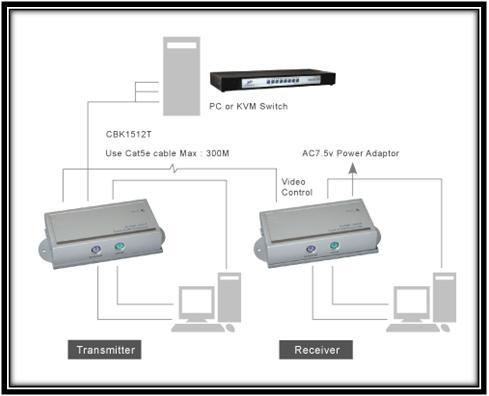

KVM-C5 solution is perfect for centralized computer management. By adapting KVM switch or KVM Drawer, you can control multiple computers on a rack locally or in a remote location. This unit is also suitable for office to secure all PCs in a computer room and extend KVM console to every desktop to ease the maintenance, save desktop space and prevent PC to be accessed through USB or other network.

Built-in smart keyboard and mouse simulation, it can support advanced function of Logitech or Microsoft mouse and work on any PS/2 PC or by using a USB to PS/2 converter to extend a USB interface computer (Ex: SUN / Mac).

The KVM-C5 extender solution is designed not only to provide accurate KVM signal, but also easy to install. It is equipped with a magnetic pad and a attachable metal plate, so you can place the KVM Extender very easily on the surface of PC or any preferred place like wood or concrete.

Features

• Extend the Keyboard / Video / Mouse of PC or KVM Switch by Cat 5 / 5e / 6 cable
• Supported VGA Resolution and Distance (distance is based on UTP cable skew 30ns/100m):
  • 1024x768 @ 300m (1000ft)
  • 1280x1024 @ 300m (1000ft)
  • 1600x1200 @@ 300m (1000ft)
  • 1920x1440 @ 300m (1000ft)
  • 2048x1536 @ 200m (650ft)
• Supports VGA, SVGA, XGA, TFT-LCD with DDC2B
• Supports PS/2 type PC or KVM switch application
• Plug & Play
• Supports MD-DOS, Windows, FreeBSD, Linux, Unix, Novell
• Auto KVM model detection for optimum setup
• Supports advanced function of Logitech and Microsoft Mice
• Manual signal control (Gain & Focus) for different extended distance and achieving the best quality
• Integrated 3-in-1 KVM cable for PC or KVM switch connection
• Transmitter (KVM-C5-S) and Receiver (KVM-C5-R) built with FOUR color LEDs to indicate system status
• Transmitter is equipped with magnetic pad and metal plate for easy installation
• Compact size

Technical Specification
