VGA and Audio Extender over CAT5 with RGB Delay Control

$369.00USD

Model:
VGA-C5A-SET

Shipping Weight:
5lbs

Overview

With only one cost effective CAT-5e cable, the Avenview VGA-C5A-SET lets you extend VGA (WUXGA) to cover the distance up to 300m (1,000ft). The system consists of Transmitter (VGA-C5A-S) and Receiver (VGA-C5A-R).

With built-in EQ and GAIN control, the transmission path can be adjusted to adapt the cable quality and video bandwidth. Furthermore, the VGA RGB delay control [de-skew] function provides the compensation among R, G, B signals due to long transmission or through normal LAN cable. Analog stereo audio signals can be sent along with high quality VGA signal over long distance LAN cable.

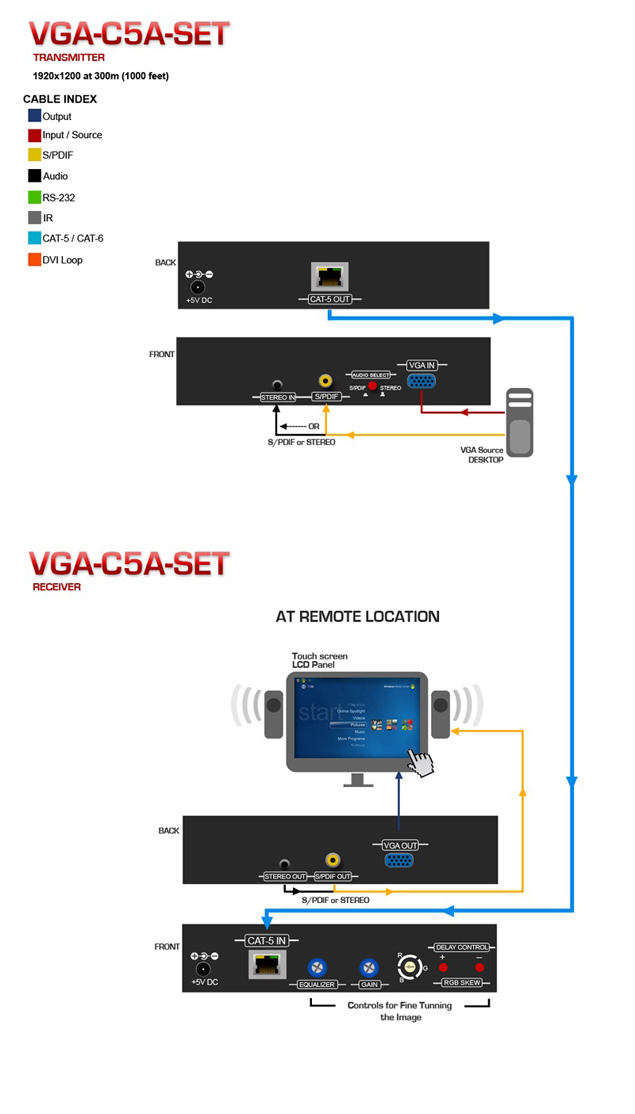

HDMI Extender over CAT5 Application Diagram

Features

Supports up to WUXGA (1920x1200@60) to 300m (1,000ft)
Supports Analog Stereo Audio and S/PDIF Digital Audio
Adjustable equalization and gain control on Receiver unit
De-skew compensation available for RGB delay control
Wall mounting case for better fixedness

Technical Specifications

Model	VGA-C5A-S	VGA-C5A-R
Description	VGA Transmitter with Audio	VGA Receiver
Video Bandwidth	350 MHz
Max Resolution and Distance	WUXGA (1920x1200) ~ 300m (1000 feet)
Audio Support	Stereo
Input Video Signal	1.2 Volts (peak-to-peak)
Equalization	Continuous Analog Control
ESD Protection	1. Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] 2. Core chipset — ±8kV
VGA Connector	HD-15 (15 pin D-sub female)
RJ45 Connector	WE/SS 8P8C with 2 LED indicators
Input DDC Signal	5 Volts (peak-to-peak, TTL)
ESD Protection	[1] Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] [2] Core chipset — ±8kV
Input Connectors	1 x VGA	1 x RJ45
Output Connectors	1 x RJ45	1 x VGA
Dimensions	4.8" x 3.7" 1"
Power Supply	5V 2A DC
Power Consumption	5 Watt (max)
Operating Temperature	0~40°C (32~104°F)
Storage Temperature	-20~60°C (-4~140°F)
Relative Humidity	20 ~ 90% RH (no condensation)

Package Contents

1 x VGA-C5A-S
1 x VGA-C5A-R
2 x Power Adapter (+5VDC, 2A)
1 x User’s Manual
