VGA and RS232 Extender over CAT5 with RGB Delay Control & IR Pass-Through

$395.00USD

  • Model: VGA-C5RS-SET
  • Shipping Weight: 5lbs
Quantity:


Overview

With only one cost effective CAT-5e cable, the Avenview VGA-C5RS-SET lets you extend VGA (WUXGA) to cover the distance up to 300m (1,000ft). The system consists of Transmitter (VGA-C5RS-S) and Receiver (VGA-C5RS-R). With built-in EQ and GAIN control, the transmission path can be adjusted to adapt the cable quality and video bandwidth. Furthermore, the VGA RGB delay control [de-skew] function provides the compensation among R, G, B signals due to long transmission or through normal LAN cable. In order to extend the control patch, VGA-C5RS-SET also has RS232 half-duplex long range extender.

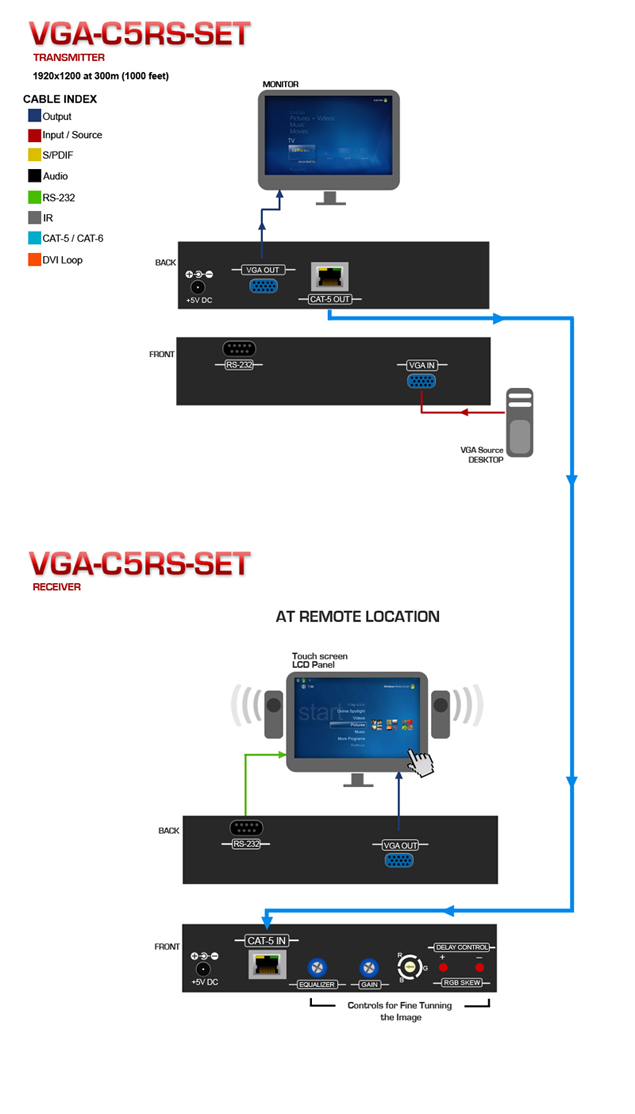

HDMI Extender over CAT5 Application Diagram

Features

  • Supports up to WUXGA [1920x1200@60] or UXGA [1600x1200@60] to 330m (1,000ft)
  • Supports RS-232 half-duplex
  • Adjustable equalization and gain control on RX unit
  • De-skew compensation available for RGB delay control

Technical Specifications
Model VGA-C5RS-S VGA-C5RS-R
Description VGA Transmitter with RS232 VGA Receiver with RS232
Video Bandwidth 350 MHz
Max Resolution and Distance WUXGA (1920x1200) ~ 300m (1000 feet)
Audio Support No
Input Video Signal 1.2 Volts (peak-to-peak)
Equalization Continuous Analog Control
ESD Protection 1. Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
2. Core chipset — ±8kV
VGA Connector HD-15 (15 pin D-sub female)
RJ45 Connector WE/SS 8P8C with 2 LED indicators
Input DDC Signal 5 Volts (peak-to-peak, TTL)
ESD Protection [1] Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
[2] Core chipset — ±8kV
Input Connectors 1 x VGA
1 x RS232		 1 x RJ45
Output Connectors 1 x RJ45
1 x VGA		 1 x VGA
1 x RS232
Dimensions 4.8" x 3.7" 1"
Power Supply 5V 2A DC
Power Consumption 5 Watt (max)
Operating Temperature 0~40°C (32~104°F)
Storage Temperature -20~60°C (-4~140°F)
Relative Humidity 20 ~ 90% RH (no condensation)

Package Contents
  • 1 x VGA-C5RS-S
  • 1 x VGA-C5RS-R
  • 2 x Power Adapter (+5VDC, 2A)
  • 1 x User’s Manual

User Guides

Avenview VGA & RS232 Extender over Single CAT5 / CAT6 with RGB Delay Control User GuideAvenview VGA & RS232 Extender over Single CAT5 / CAT6 with RGB Delay Control User Guide
