Overview

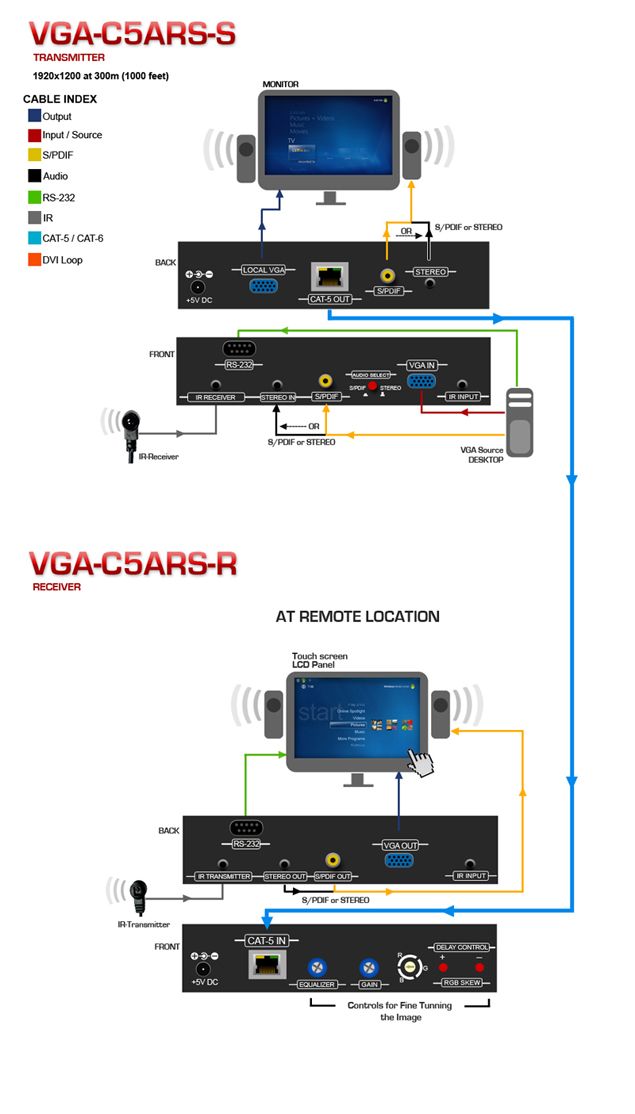

With only one cost effective CAT-5e cable, the Avenview VGA-C5ARS-SET lets you extend VGA (WUXGA) to cover the distance up to 300m (1,000ft). The system consists of Transmitter (VGA-C5ARS-S) and Receiver (VGA-C5ARS-R). With built-in EQ and GAIN control, the transmission path can be adjusted to adapt the cable quality and video bandwidth. Furthermore, the VGA RGB delay control [de-skew] function provides the compensation among R, G, B signals due to long transmission or through normal LAN cable. VGA-C5ARS-SET is also has RS232 half-duplex long range extender along with VGA and Audio signals.

Features

• Supports up to WUXGA (1920x1200@60) to 300m (1,000ft)
• Supports Analog Stereo Audio and S/PDIF Digital Audio
• Supports RS232 half-duplex & bi-directional IR Control Path
• Local VGA and Audio output
• Adjustable equalization and gain control on Receiver unit
• De-skew compensation available for RGB delay control
• Wall mounting case for better fixedness

Technical Specifications

Package Contents
