Description

Overview

The Avenview AVXWALLPRO™ is a professional, multi-platform video wall solution designed to unify all your visual resources into a single, seamless canvas¹. Built for mission-critical Command and Control Centers, War Rooms, and Enterprise Meeting spaces, the AVXWALLPRO simplifies complex content management, empowering operators to monitor, analyze, and share critical data across local and remote environments with confidence^.

Unlike traditional hardware-based controllers, the AVXWALLPRO utilizes a robust Linux-based architecture and a network-centric design³. It integrates diverse data sources—including physical HDMI inputs, IP cameras, VDI/VNC remote desktops, and web applications—onto a unified dashboard that can be scaled effortlessly across any display configuration^.

Whether managing a single 2×2 video wall or a massive multi-site control room network, the AVXWALLPRO delivers the scalability, redundancy, and security required for high-stakes operations.

Features

Powerful Content Management

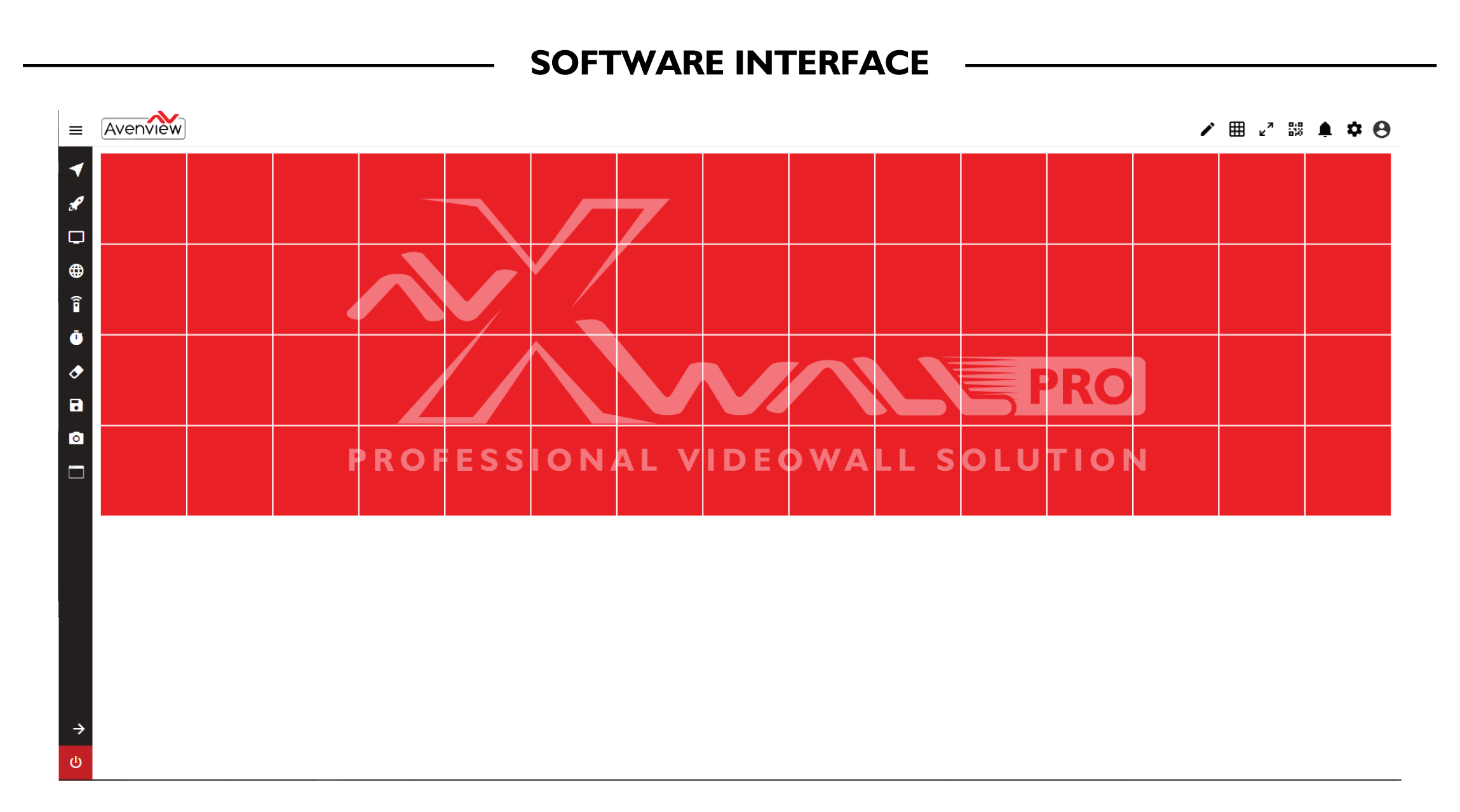

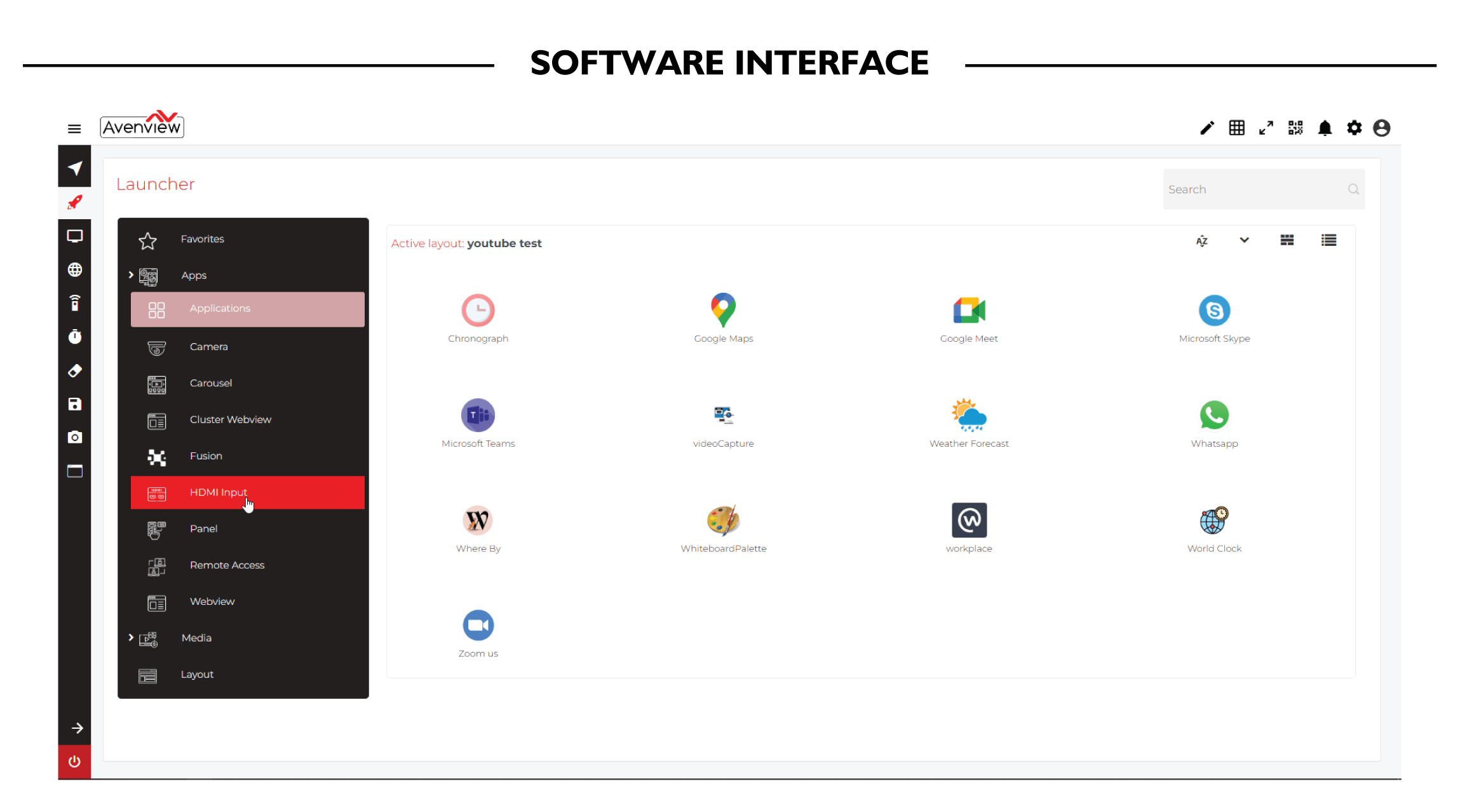

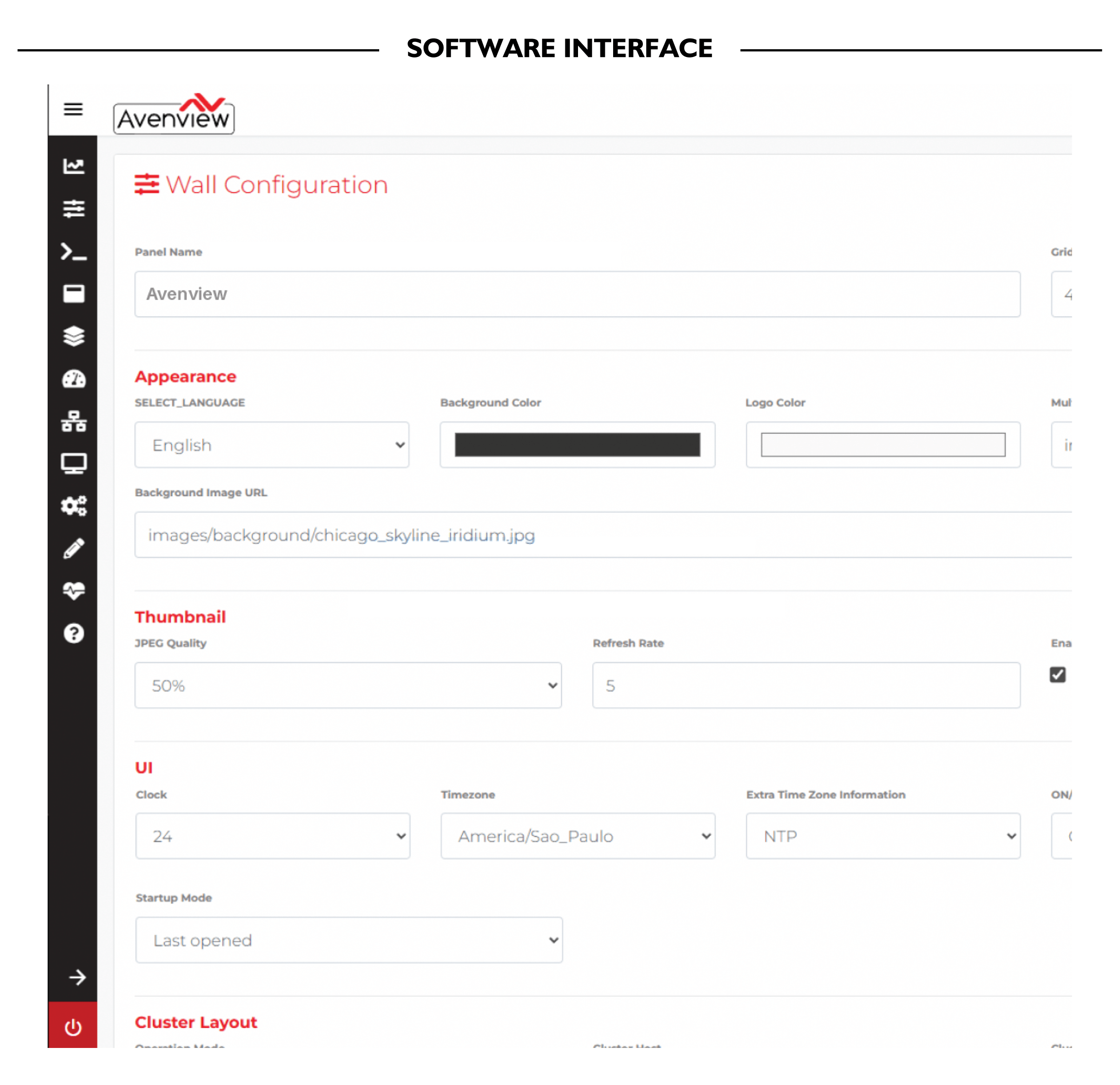

- Intuitive Web-Based Dashboard: Manage your entire video wall from a secure, browser-based interface. Operators can drag-and-drop sources, resize windows, and recall layouts instantly without complex training.
- Multi-Source Integration: Seamlessly display a mix of local HDMI inputs, IP video streams (H.264/RTSP), web browser content, and remote desktop sessions (RDP, VNC) side-by-side.
- KVM & Control: Includes “Soft KVM” functionality, allowing operators to use a single keyboard and mouse to control multiple remote workstations directly from the video wall canvas.
Enterprise Scalability & Security
- AVXWALLPRO Clustering™: Connect multiple controller nodes over the network to work as a single entity. This allows for massive video walls (e.g., 64+ screens) that function as one continuous surface with load balancing.
- High Availability Redundancy: Designed for 24/7 reliability with hot-swappable drives, redundant power supplies (on Server models), and failover capabilities to ensure zero downtime in mission-critical environments.
- Advanced Security: Built on a secure Linux architecture with encrypted authentication certificates and LDAP support for managing user groups and permissions.
Network-Centric Architecture
- AVXWALLPRO Connect Gateway: Integrates Virtual Desktop Infrastructure (VDI) sessions directly into the management platform, giving you fast access to multiple systems from one dashboard.
- Anywhere Access: Push content not just to the main video wall, but to secondary displays, operator workstations, and even mobile devices (iOS/Android) for field teams.

Technical Specifications

The AVXWALLPRO is available in four high-performance form factors to suit any project size, from small digital signage to large-scale military command centers.

AVXWALLPRO Embedded Micro

Best For: Digital Signage, Small Operation Centers, Reception Areas.
Form Factor: Micro Desktop
Outputs: 2x 4K Outputs
Inputs: 2x 1080p Inputs
Software Level: Basic

AVXWALLPRO Compact Tower

Best For: Small to Medium Control Rooms, Surveillance, Boardrooms.
Form Factor: Compact Tower
Outputs: 4x 4K Outputs
Inputs: 4x 1080p Inputs
Software Level: Advanced

AVXWALLPRO Professional Tower

Best For: Medium/Large Mission-Critical Control Rooms.
Form Factor: Professional Tower
Processor: Intel® Core™ i9 X-Series (10 Cores, 3.7GHz)
Memory: 16GB DDR4 ECC Memory
Storage: 512GB SSD
Video Outputs: 8x 4K (mDP/DP) via Dual NVIDIA Professional GPUs
Network: 1x 1Gbps Ethernet Interface
Power: 950W Power Supply (100~240 Vac)
Software Level: Enterprise

AVXWALLPRO Server Rack 2U

Best For: Large Scale Command Centers, Data Centers, High-Redundancy Requirements.
Form Factor: 2U Rack Mount
Processor: Dual Intel® Xeon® Silver (10 Cores each, 2.4GHz)
Memory: 32GB DDR4 ECC Memory
Storage: 2x 512GB SSD (RAID 1 Configured)
Video Outputs: 16x 4K (mDP/DP) via Quad NVIDIA Professional GPUs
Network: 4x 1Gbps Ethernet Interface
Power: Dual, Hot-Plug Redundant Power Supplies (1+1) 1100W
Software Level: Enterprise / Custom

Software Licensing

Choose the right feature set for your deployment needs^.

Feature	Basic	Advanced	Enterprise
Web Views & Media Files	✓	✓	✓
Layout Management	✓	✓	✓
User Management	–	✓	LDAP Integration
IP Video Decode	Limited	Up to 16 Streams	> 16 Streams
Remote Desktops	–	✓	✓
High Availability	–	–	Hot Stand-by
Application	Digital Signage	Surveillance/Control Room	Mission Critical

System Topology

Inputs: HDMI Sources, IP Cameras, VDI/VNC/RDP, Cloud Applications, Mobile Devices.
Processing: AVXWALLPRO Controller (Single or Clustered Nodes).
Outputs: Main Video Wall, War Room Displays, Operator Workstations, Secondary Video Walls (Remote Centers).
Control: Web-based interface accessible via Operator Workstations or Tablets.
