Overview |

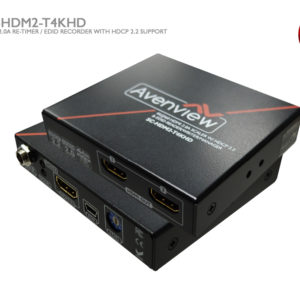

The SC-HDM2-HD42K-A scaler with HDMI 2.0a and HDCP 2.2 Support is a 1 by 2 UHD Scaler with Audio De-Embedded designed to upscale 1080p signal to 4K2K 6G or downscale 4K2K 6G signal to 1080p with synchronized digital and analog audio output. Friendly and simple design that allow user with direct viewing on input HDMI content and OSD that ease user with output settings/selection. Scaling signal up to 2 simultaneous HDMI output with two different resolutions or generate patterns to output display with assigned resolution allowing on-site display testing. This UHD Scaler is the best define tool between your HD and UHD signal. Features | • HDMI 2.0 with 6G 4K2K support and HDCP 2.2 compliance.
• HDMI signal bypass on both outputs or upscale 1080p signal to 4K2K on output B and downscale 4K2K signal to 1080p on output A.
• 4K2K@50/60 (4:4:4) to 4K2K@50/60(4:2:0) conversion
• Auto pattern generation with assigned resolution for on-site display testing.
• HDMI input of one 6G and HDMI outputs of two 6G
• HDMI signal bypass, upscale and downscale.
• Multiple EDID selections.
• High-Dynamic-Range (HDR).
• HDR conversion from 4K2K@24/25/30(444/422)10 or 12bit to 4096x2160@24/25/30Hz 8bit fix.
• UHD resolutions up to 4K2K: 3840x2160@24/25/30Hz 3840x2160@50/60 Hz (4:4:4) & 4096x2160 @24/25/30 Hz, 4096x2160@50/60Hz (4:4:4).
• Data rate up to 6Gbps (600MHz) and Deep Color up to 1080p 48-bit.
• Supports pass-through of HD audio formats of LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby
• Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio.
• HDMI compatible with DVI.
• OSD with instant I/O resolution display.
• Digital to Analog (DAC) audio conversion.
• Apple mode signal display.
• HDCP 2.2 to HDCP1.4 conversion. Note: When displaying HDMI 4K2K/HDR signal, equivalent source signal, output display and HDMI cables are required in order tosecure the best image display. It is suggested to use Premium High Speed HDMI cable for 6G HDMI signal. |
Specifications | ITEM | DESCRIPTION | UNIT | SC-HDM2-HD42K-A | UNIT DESCRIPTION | HDMI Up/Down Scaler with Test Pattern & Audio Support | SUPPORTED RESOLUTION | HDR 4K2K@24/25/30/50/60 (4096x2160/3840x2160)(4:2:0 10bits) /
4K2K@24/25/30/50/60 (3840x2160) (4:4:4 8bits),
1920x1080p@24/25/30/50/60, 720x480p, 720x576p, 1280x720p (for more detailed supported resolutions check page 16 in the user guide) | HDMI COMPLIANCE | HDMI 2.0a | INPUT PORTS | 1x HDMI, 1x USB (factory use) | | OUTPUT PORTS | 2x HDMI | | HDCP VIDEO COMPLIANCE | | HDMI CONNECTOR | Type A [19-pin female] | DIGITAL AUDIO SUPPORT | 5.1/7.1 Lossless Dolby TrueHD and DTS-HD Surround Sound | USB CONNECTOR | Type A USB | | HDR SUPPORT | Yes | | HDMI OUT OPTIONS | OUTPUT 1: Bypass - Upscale to 4K
OUTPUT 2: Bypass - Downscale to 1080p | | VIDEO BANDWIDTH | Single-link 600MHz [18Gbps] | CHROMA SAMPLING | 4:2:0, 4:2:2 and 4:4:4 | POWER SUPPLY | 5V DC/2.6A (US/EU standards, CE/FCC/UL certified) | | POWER CONSUMPTION | 5.8 Watt [max] | | DIMENSIONS (L X W X H) | 231 x 108 x 25mm [9” x 4.25” x 1”] | WEIGHT | 616g [1.3 lbs] | ENVIRONMENTAL | OPERATING TEMPERATURE | 32° ~ 104°F (0° to 40°C) | STORAGE TEMPERATURE | -4° ~ 140°F (-20° ~ 60°C) | | ESD PROTECTION | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) | RELATIVE HUMIDITY | 20~90% RH (no condensation) |
|
|
