Overview

Avenview’s DVI-SPLITPRO-4K Advanced Quad Screen Video Processor with IR, Keyboard and Mouse Control is an advanced video processor for multimedia presentations. It is an ideal solution for applications where up to four video signals must be displayed on a single display. It supports up to 16 types of video formats, four of which can be outputted simultaneously with the desired display layout through software control. The advanced video processor software allows you to manipulate the output images to many different positions and the various sizes you want. You can view four computers or four video signals or a combination. In addition to the 4 Channel Video Processor, Avenview DVI-SPLITPRO-4K is also equipped with PS/2 and USB keyboard and mouse control. With this feature, users can switch the keyboard and mouse control among 2 to 4 PC sources.

The embedded scalar converts signals from input sources to match the native resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA (1920x1200). Dual outputs are provided in both analog (VGA) and digital (DVI) formats; one is connected to remote display and the other is connected to an on-site display for real time monitoring.

Features

• Supports the six most popular video formats: four VGA, four DVI/HDMI, four component, four S-Video and four composite inputs;
• Input resolution support from 640x480 to 1920x1200, interlaced or progressive;
• DVI 1.0 & HDMI 1.2;
• Supports HDCP 1.1;
• Dual outputs (DVI / VGA), 640x480 to 1920x1200;
• 4 Port Keyboard / Mouse Control with PS/2 Input and USB Outputs;
• Video background available;
• Adjustable size & position through software;
• Dynamic transition for video sizing and positioning;
• Titles, borders and colored backgrounds;
• Resize, position, zoom & pan and blend output videos;
• Image parameters and layouts are automatically saved in flash memory and can be recalled for later use;
• Several Image parameters and layouts can be saved in computers and can be loaded for later use;
• Video parameters adjustable (brightness, contrast, color temperature, etc.);
• User-selectable output settings, up to 1920x1200;
• Use as a Video Splitter, a Video Converter and a Video Switcher;
• Firmware upgradable for support of new features and technology enhancements;

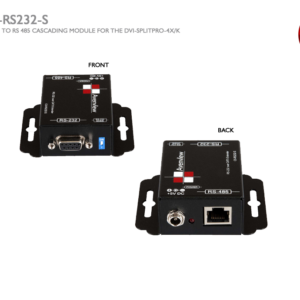

• Control through RS-232/RS-485 over Cat-5 and IR Remote Control;
• Can be cascaded to obtain more images using RS-485 control path;
• Control protocol available for customer proprietary design;
• 1RU Size
