Overview |
| The HDM-C6MWIP-R-V4 delivers enterprise-grade 4K@60Hz AV over IP distribution across Unicast and Multicast modes — transmitting Ultra High-Definition video, audio, and USB 2.0 up to 100m over a single cable, with full support for USB flash drives, keyboards, and mice at the display end. Cascade Gigabit network switches to extend reach indefinitely without signal degradation or added latency, and leverage IP-to-IR and IP-to-RS-232 conversion to maintain complete device control from any point on the network. In Multicast mode, a single transmitter drives unlimited receivers simultaneously with zero bandwidth penalty — making large-scale video wall deployments as straightforward as they are powerful. Bi-directional IR and RS-232 pass-through, analog line level audio I/O, and a microphone input give operators full command of their environment, while USB over IP transforms the system into a seamless remote hub. Manage everything through WebGUI, IP Master Controller, Telnet, or the on-screen display. With Dante Ready built in, adding professional-grade networked audio is a simple activation — no complex licensing, no rewiring, just expanded capability when you need it. |
Features |
- Free routing and seamless switching for continuous workflow
- Create any size video wall up to 16 × 16 in multicast mode.
- EDID and HDCP 1.4 compliant for maximum compatibility.
- Integrated with multiple computers and USB devices for real-time collaboration
- Seamless control using OSD hot key between local and remote sites
|

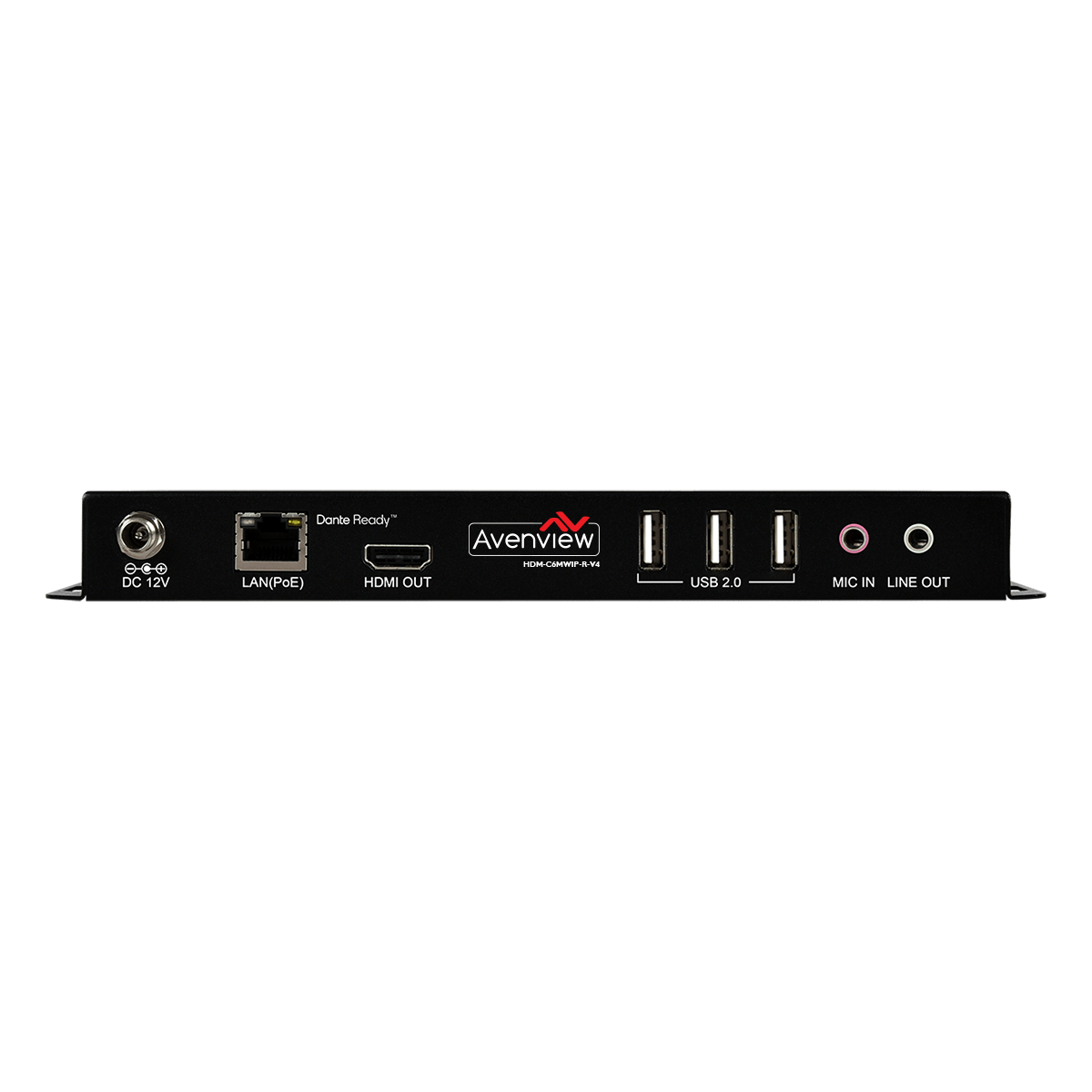

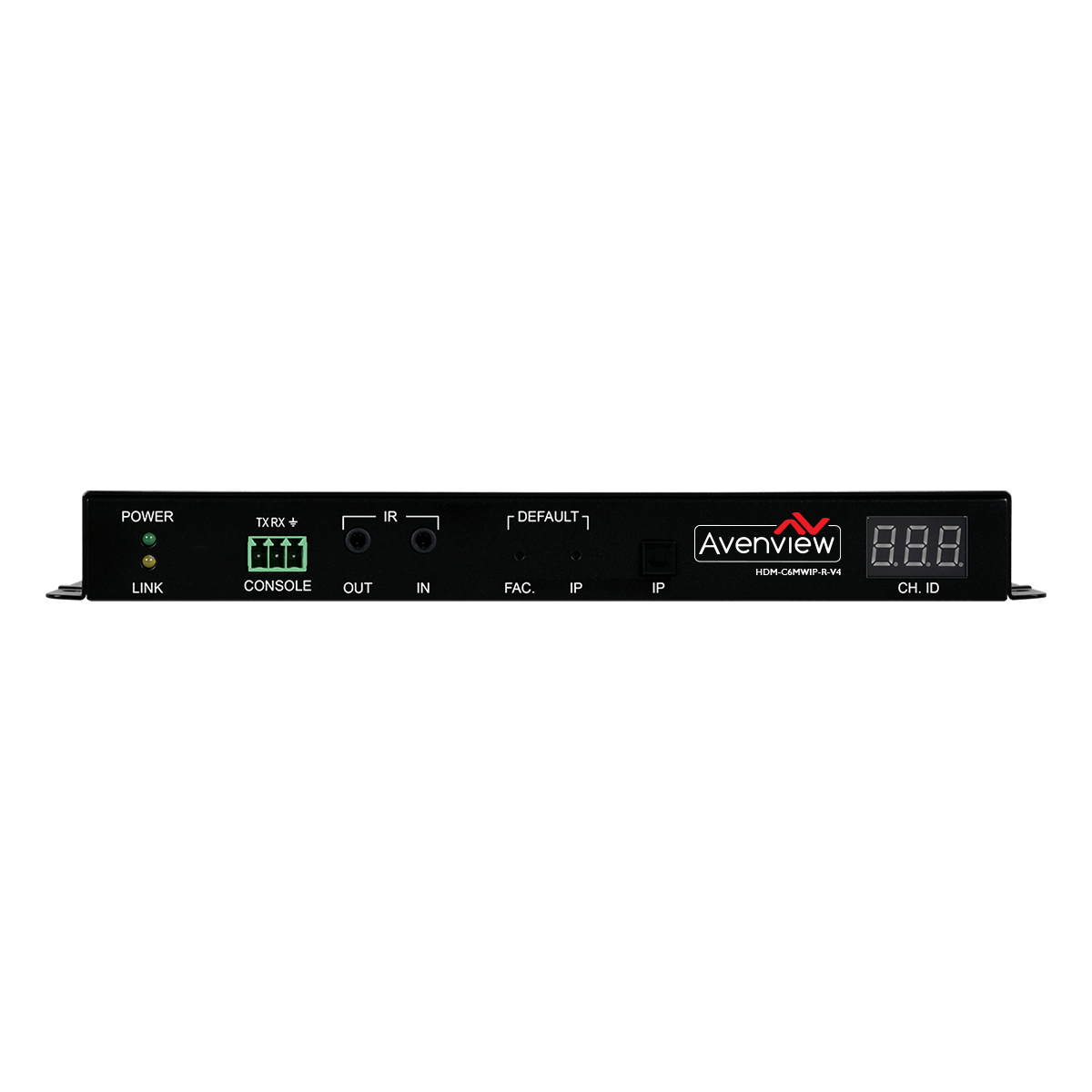

| Interfaces | |
| Input Port | 1×HDMI (Type-A) |
| 1×Stereo Audio (3.5mm) |
| Output Port | 1×HDMI (Type-A) |
| 1×Stereo Audio (3.5mm) |
| Output/Control Port | 1×GbE LAN (RJ-45) |
| Pass-through Port | 1×IR Extender (3.5mm) |
| 1×IR Blaster (3.5mm) |
| 1×RS-232 (3-pin Terminal Block) |
| 1×USB 2.0 (Type-C) |
| Video | |
| HDMI Compliance | HDMI 2.0 (DVI 1.0) |
| HDCP Compliance | HDCP2.2 |
| Input Signal Type | 4096x2160p@60 8bit RGB |
| Output Signal Type | 4096x2160p@60 8bit RGB |
| Resolutions | |
| Maximum Input | HDMI | 4096x2160p@60 |
| Maximum Output | LAN(Streaming) | 4096x2160p@60 |
| Audio | | |
| Digital Format | HDMI | LPCM (8Channels), Bitstream, |
| High Bit Rate Bitstream |
| | Line In/Out | LPCM (2 Channels) |
| Line Level | Line In | 2 Vrms, S/N Ratio: |
| > 80dB (1kHz with 0dBFS) |
| 2 Vrms, S/N Ratio: |
| > 80dB (1kHz with 0dBFS) |
| Power | |
| Power Supply | PoE (802.3af) or 12V/1.25 A |
| Power Consumption | 7.19W |
| Enclosure | |
| Chassis Material | Metal (Steel) |
| Chassis Color | Black |
| Dimensions (W×H×D) | 231.5mm×25mm×108mm [Case Only] |
| 231.5mm×25mm×120mm [All Inclusive] |
| Weight | 660g |
- 1× 4K60 HDMI over IP Receiver with USB 2.0
- 1× 12V/1.25A DC Power Adapter
- 1× IR Extender Cable
- 1× IR Blaster Cable
- 1× Operation Manual
Avenview HDM-C6MWIP-S-V4 User Guide
