Overview

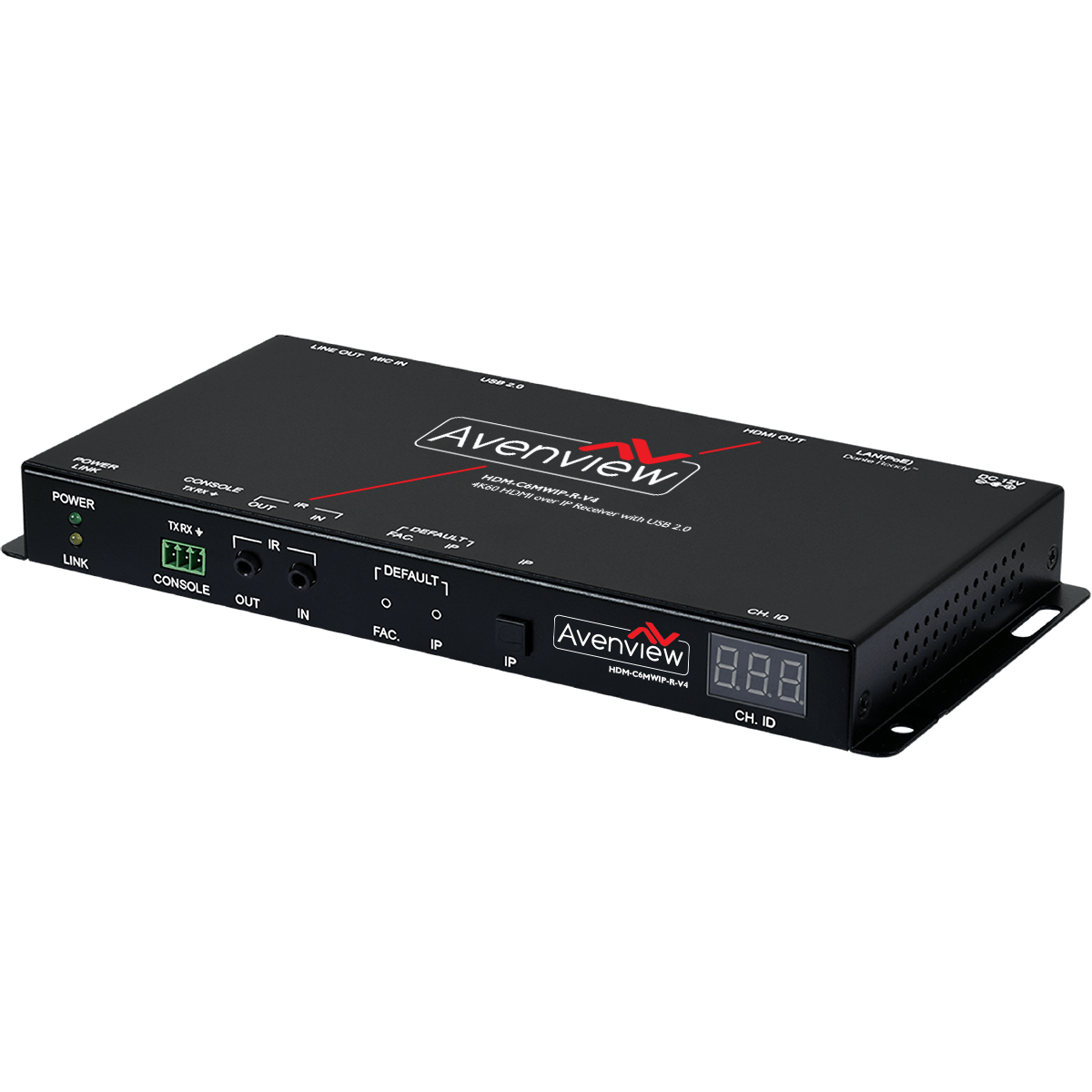

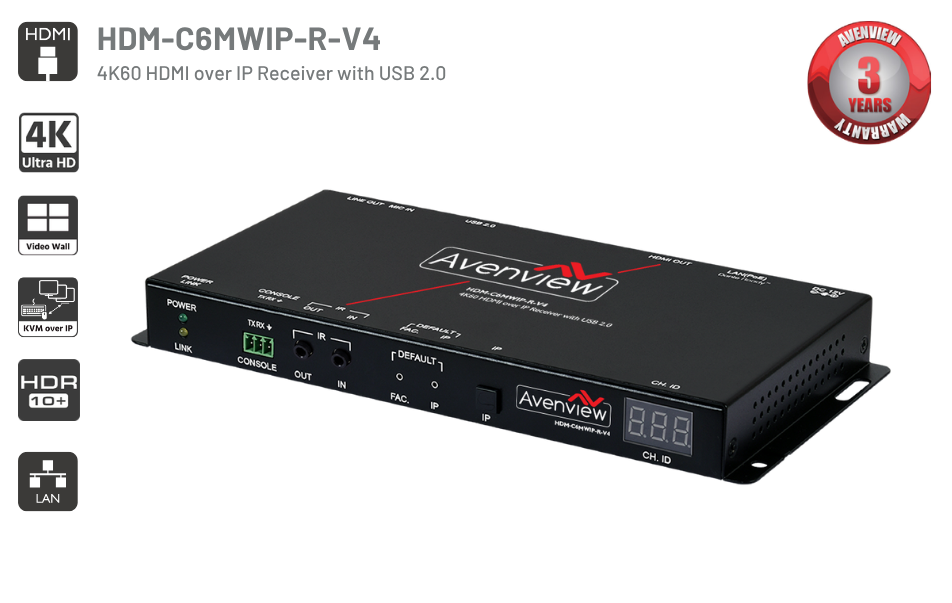

The HDM-C6MWIP-SET-V4 delivers enterprise-grade 4K@60Hz AV over IP distribution across Unicast and Multicast modes — transmitting Ultra High-Definition video, audio, and USB 2.0 up to 100m over a single cable, with full support for USB flash drives, keyboards, and mice at the display end. Cascade Gigabit network switches to extend reach indefinitely without signal degradation or added latency, and leverage IP-to-IR and IP-to-RS-232 conversion to maintain complete device control from any point on the network. In Multicast mode, a single transmitter drives unlimited receivers simultaneously with zero bandwidth penalty — making large-scale video wall deployments as straightforward as they are powerful. Bi-directional IR and RS-232 pass-through, analog line level audio I/O, and a microphone input give operators full command of their environment, while USB over IP transforms the system into a seamless remote hub. Manage everything through WebGUI, IP Master Controller, Telnet, or the on-screen display. With Dante Ready built in, adding professional-grade networked audio is a simple activation — no complex licensing, no rewiring, just expanded capability when you need it.

Features

Free routing and seamless switching for continuous workflow
Create any size video wall up to 16 × 16 in multicast mode.
EDID and HDCP 1.4 compliant for maximum compatibility.
Integrated with multiple computers and USB devices for real-time collaboration
Seamless control using OSD hot key between local and remote sites

Technical Specifications

Interfaces
Input Port	1×HDMI (Type-A)
	1×Stereo Audio (3.5mm)
Output Port	1×HDMI (Type-A)
	1×Stereo Audio (3.5mm)
Output/Control Port	1×GbE LAN (RJ-45)
Pass-through Port	1×IR Extender (3.5mm)
	1×IR Blaster (3.5mm)
	1×RS-232 (3-pin Terminal Block)
	1×USB 2.0 (Type-C)
Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	HDCP2.2
Input Signal Type	4096x2160p@60 8bit RGB
Output Signal Type	4096x2160p@60 8bit RGB
Resolutions
Maximum Input	HDMI	4096x2160p@60
Maximum Output	LAN(Streaming)	4096x2160p@60
Audio
Digital Format	HDMI	LPCM (8Channels), Bitstream,
		High Bit Rate Bitstream
	Line In/Out	LPCM (2 Channels)
Line Level	Line In	2 Vrms, S/N Ratio:
		> 80dB (1kHz with 0dBFS)
		2 Vrms, S/N Ratio:
		> 80dB (1kHz with 0dBFS)
Power
Power Supply	PoE (802.3af) or 12V/1.25 A
Power Consumption	7.19W
Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	231.5mm×25mm×108mm [Case Only]
	231.5mm×25mm×120mm [All Inclusive]
Weight	660g
